RHML37XEVB

RHML37XEVB

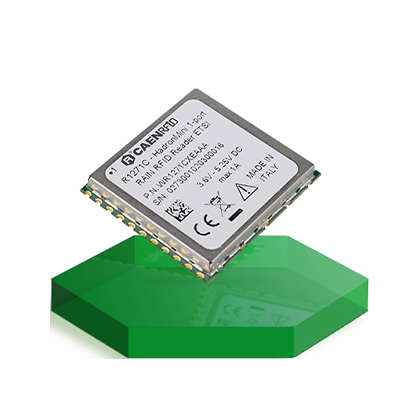

Evaluation Board for Hadronmini R1271C, Lepton3 R3100C and Lepton7 R7100C

img RHML37XEVB
Panoramica

L’evaluation board RHML37XEVB è progettata per consentire un facile sviluppo di applicazioni per lettori Hadronmini R1271C, Lepton3 R3100C e Lepton7 R7100C utilizzando un PC o altri host in grado di inviare comandi al lettore tramite UART. Include una serie di componenti e connettori di circuiti integrati per consentire la connessione a host USB o UART o ad altri kit di sviluppo o hardware del cliente.

Digital I/O

Four I/O lines 5V out @ 3mA, 5V input

USB Port

USB micro female connector
USB 2.0 device
It appears as dual Virtual COM Port device; drivers for all
Windows OS

DC power port via USB Port

USB micro female connector

External antenna connector

SMA jack

Embedded antenna

Ignion NN01-105

Raspberry PI interface

HAT connector

Electrical Power

DC Voltage 5V +/-5%

Current consumption

1.5A max. (with reader module)

LED display

GREEN: power from AC/DC adapter and/or USB port
GREEN: reader module’s HEALTH
YELLOW: reader module’s STATUS
GREEN: GPIO[0..3]

Dimensions

(W)79 x (L)78 x (H)23 mm3
(3.1 x 3.1 x 0.9 inch3)

Name
Revision
R1271C Hadron mini Technical Information Manual
3

Name

R1271C Hadron mini Data Sheet
R3100C Lepton3 Data Sheet
R7100C Lepton7 Data Sheet

REACH Declaration of Conformity

R1271C Hadron mini Technical Drawings

CAEN RFID Products Catalog

WRHML37XEVBX
Evaluation Board for R1271C, R3100C, R7100C and R9100C
