WCAVOAAAX004
WCAVOAAAX004

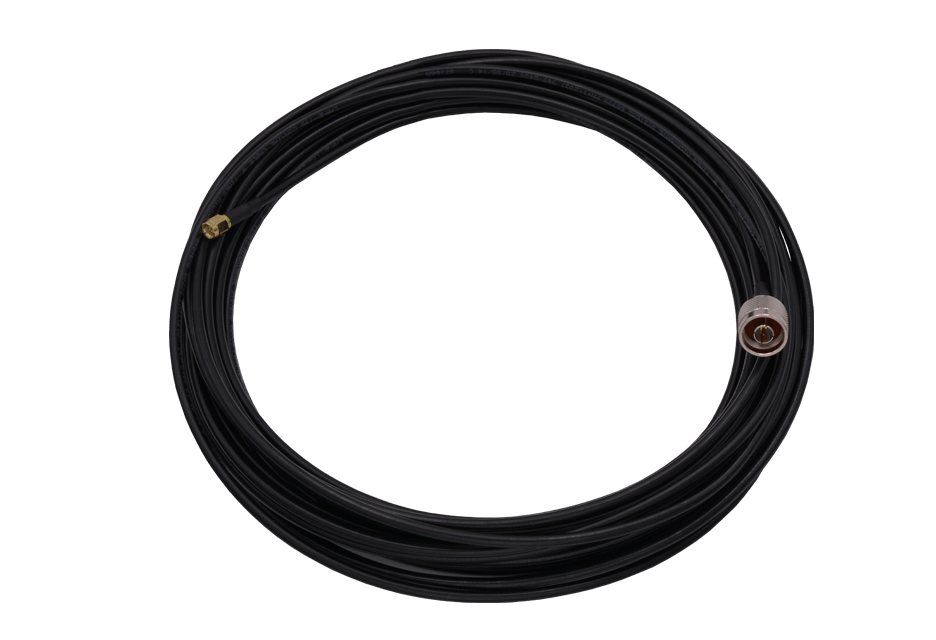

The WCAVOAAAX004 is a 15m antenna RF cable with SMA-N connectors
The WCAVOAAAX004 is a 15m antenna RF cable with SMA-N connectors. It is best suited for the RA0003 multiplexer.
SMA-N
15m
The RA0003 module is a 1 to 4 UHF antenna multiplexer that allows to expand read points management of CAEN RFID easy2read product line.
Typical usages of the device are the following:
RA0003 has SMA RF connectors, is able to manage up to 2W RF power and can be used in the whole range of UHF RFID worldwide band.
The module has a extended supply voltage range (9Vdc – 36Vdc) and TTL level address signal.
Five leds provide the user with information about module operation.
1 to 4 antenna multiplexer
50 Ohm
860 ÷ 960 MHz
up to 2W
1.5dB typ.
22dB typ.
27dB typ.
SMA jack
9Vdc ÷ 36Vdc
< 350mW
0V ÷ 6V
Green LED: power
Yellow LEDs: selected antenna information
-20°C to +70°C
IP30
(W)65 x (L)93 x (H)35 mm 3
(2.6 x 3.7 x 1.4 inch3 )
155g
This antenna is designed for RAIN RFID long range application like portals, vehicles identification, access control or waste management.
Thanks to the circular polarization, the tag read range is independent from the relative tag – antenna orientation.
The enclosure is IP65 rated for outdoor installation.
865 ÷ 868 MHz (ETSI EN 302 208)
Right Hand Circularly Polarized (RHCP)
8.5 dBc
65° (Elevation)
65° (Azimuth)
17 dB
2 dB
1.1:1
50 ohm
2 W e.r.p. (ETSI EN 302 208 v3.1.1)
5 W (max)
Capacitor feed system
270 x 270 x 75 mm
1.2 kg
N-f with 30cm RG58 cable
Polystyrene plastic (UV rating)
Aluminium (for pole)
IP65
-30 to +60 °C
-30 to +60 °C
160 km/h
0.066 m2
This antenna is designed for RAIN RFID long range application like portals, vehicles identification, access control or waste management.
Thanks to the circular polarization, the tag read range is independent from the relative tag – antenna orientation.
The enclosure is IP65 rated for outdoor installation.
902 ÷ 928 MHz (FCC part 15.247)
Right Hand Circularly Polarized (RHCP)
8.5 dBc
65° (Elevation)
65° (Azimuth)
15 dB
< 2.5 dB
1.3:1
50 ohm
4 W e.i.r.p. (FCC Part 15.247)
5 W (max)
Capacitor feed system
270 x 270 x 75 mm
1.2 kg
N-f with 30cm RG58 cable
Polystyrene plastic (UV rating)
Aluminium (for pole)
IP65
-30 to +60 °C
-30 to +60 °C
160 km/h
0.066 m2
The WCAVOAAAX003 is a 5m antenna RF cable with SMA-N connectors. It is best suited for the RA0003 multiplexer.
SMA-N
5m
The WCAVOAAAX005 is a 5m antenna RF cable with TNC/RP-N connectors. It is best suited for the ION R4301P and Proton R4320P readers.
TNC/RP-N
5m
The WCAVOAAAX006 is a 15m antenna RF cable with TNC/RP-N connectors. It is best suited for the ion R4301P Fixed UHF RFID reader.
TNC/RP-N
15 m
