qDock – qIDmini docking station

img RA0005
Overview

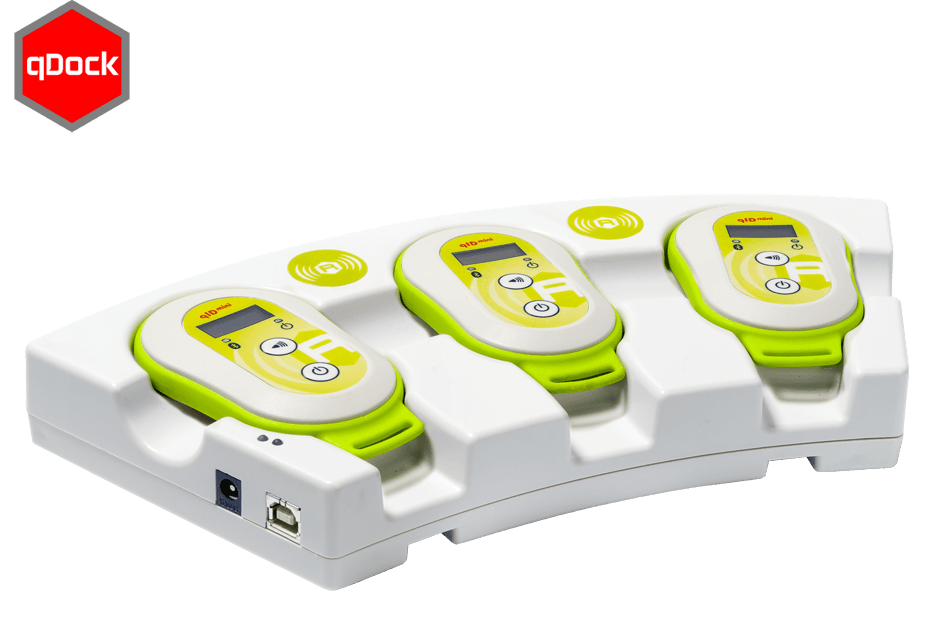

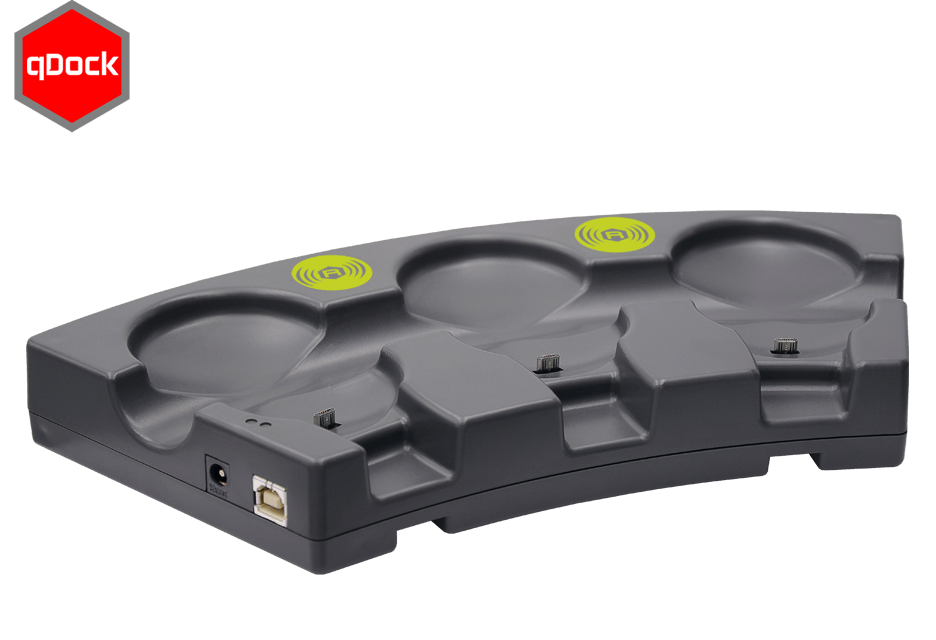

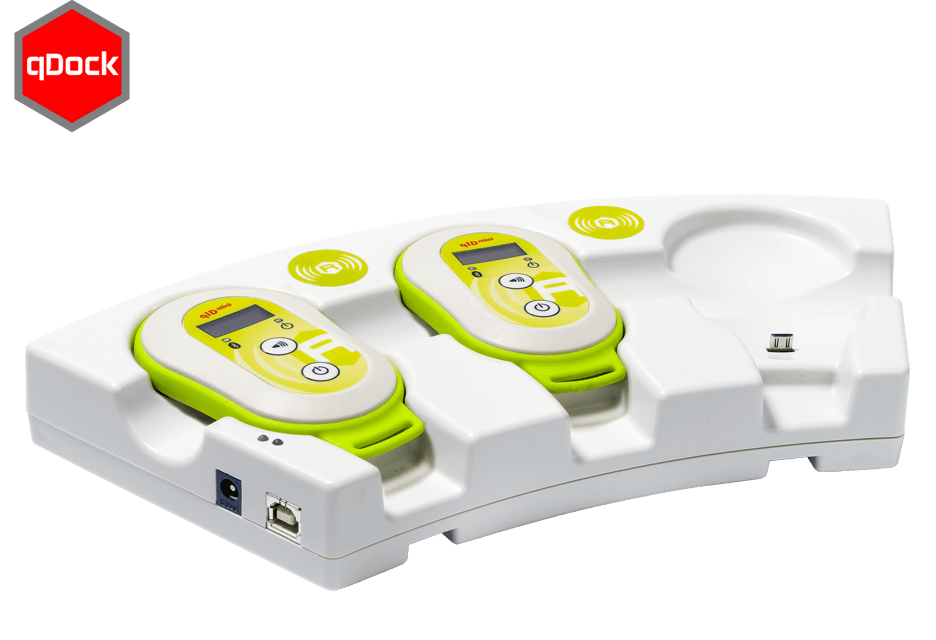

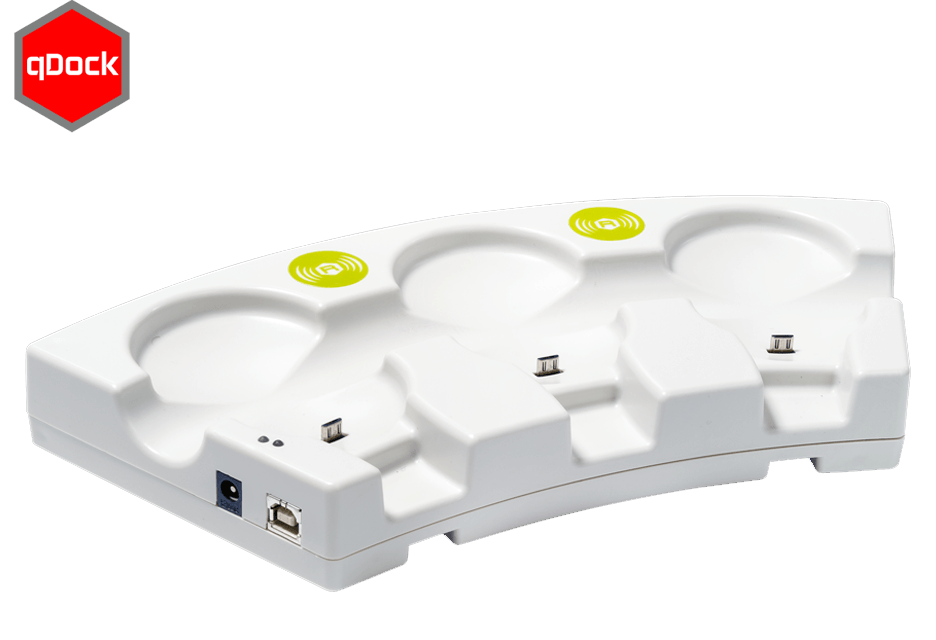

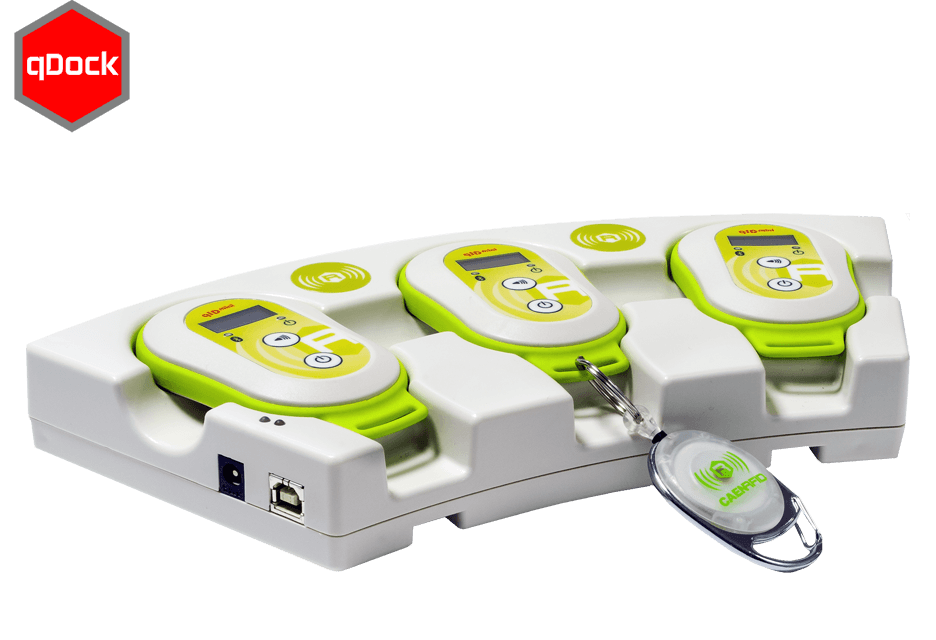

The qDock (RA0005) is a recharging docking station for the R1170I – qIDmini reader that can host up to three (3) readers and recharge them simultaneously.
The qDock is recommended as a recharging station when more than one reader is used in the same premise to reduce the number of micro USB charging cables around. Its ergonomic form factor is designed to make the plug/unplug operation easy and safe.
The docking station is provided together with its external power supply to be connected to a power socket for recharging.
A USB device port permits to connect the docking station to a PC to upgrade the firmware of the readers when needed.
The docking station can be also wall mounted using the provided hooks.

Function

docking station

USB interface

USB 2.0 Full Speed (12 Mbit/s) device port

USB Connector to Reader

Micro type B

USB Connector to PC - Cable

Type B

User Interface

Green LED ON: external power supply active
Orange LED ON: USB communication ON

Power supply Input

5Vdc ± 5% @ 2A max

Power Supply Connector

Power Jack – Negative Central Pin

Battery Charging Time

2h (typical)

Operating Temperature

-10 °C to +55 °C

IP rating

IP40

Dimensions

(W)288 x (L)140 x (H)34 mm3 max.
(11.3 x 5.5 x 1.3 in3)

Enclosure

ABS

Weight

300g

Name
Revision
RA0005 Docking Station Technical Information Manual
1

Name

RA0005 qDock Data Sheet

RA0005 Docking Station CE Declaration of Conformity
RA0005 Docking Station FCC Grant
REACH Declaration of Conformity

CAEN RFID Products Catalog

WRA0005XAAAA
RA0005 - qDock - qIDmini docking station - White
WRA0005XGAAA
RA0005 - qDock - qIDmini docking station - Gray
Accessories
