R1307I

fIDo

RAIN RFID Sled Reader

new
img R1307I

BENEFITS

  • High Performance reading
  • Flexible
  • img USB Type C

    USB Type C

  • img HID

    HID

  • img Bluetooth

    Bluetooth

  • img Wireless charge

    Wireless charge

Features
  • RAIN RFID (UHF EPC Class1 Gen2, ISO 18000-63) compliant
  • ETSI and FCC versions available
  • Bluetooth/BLE communication
  • Integrated circular polarized antenna
  • Ergonomic form factor
  • Battery powered
  • iPhone/iPad compatibility
  • SP-Connect™ universal mounting for smartphones
  • Embedded smartphone wireless charger
  • Optional barcode scanner
Applications
  • RAIN RFID add-on to smartphones, tablets and mobile terminals
  • Shop inventory and cycle counting
  • Asset tracking
  • Warehouse management
  • Mobile workers
Overview

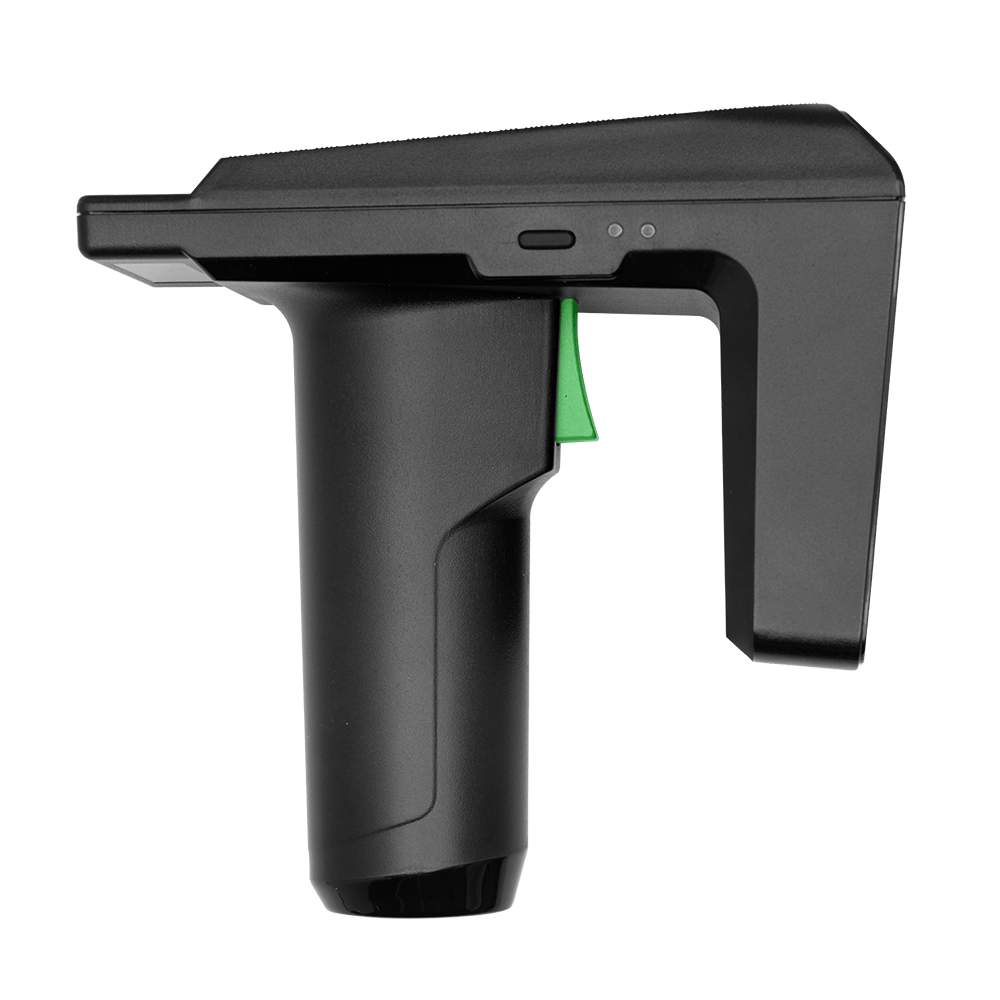

fIDo (Model R1307IE, R1307IU) is a RAIN RFID sled reader of the easy2read© product line with integrated antenna for long range applications.

The reader hosts an internal 5200mAh rechargeable battery that provides excellent operating time. The embedded wireless charging transmitter permits to charge the smartphone when the fIDo is connected to the power supply without the needs to detach it from the reader.

Thanks to the Bluetooth® communication interface, the fIDo is a perfect add-on for any Bluetooth® enabled host such as a PC, a smartphone, a PDA or a tablet for RAIN RFID readings. The reader is compatible with Windows 8/10, Windows CE/Mobile, Android and iOS operating systems.

The device supports both Bluetooth Low Energy (BLE) and Bluetooth classic communication to provide the maximum usage flexibility, including the HID profile for keyboard emulation.

fIDo integrate a SP-Connect SPC+ mounting adapter to easily fix a wide range of smartphones with dedicated phone cases.

fIDo is ideal for inventory management, mobile workers, service and maintenance applications, asset tracking and many other AutoID applications.

The radio frequency core of the reader is based on the Impinj E710 IC that permits to achieve fast reading speed and to be used in dense reader and dense tag environments for top-class rated performances.

Frequency Range

865.600÷867.600 MHz (ETSI EN 302 208 v. 3.3.1) (Mod. R1307IE)
902÷928 MHz (FCC part 15.247) (Mod. R1307IU)

RF Power

Configurable from 11 dBm ERP to 28 dBm ERP (Mod. R1307IE)
Configurable from 13 dBm EIRP to 30 dBm EIRP (Mod. R1307IU)

RX Sensitivity

-85 dBm – 10%PER @ 30 dBm output

Number of Channels

4 channels (compliant to ETSI EN 302 208 v. 3.3.1) (Mod. R1307IE)
50 hopping channels (compliant to FCC part 15.247) (Mod. R1307IU)

Standard Compliance

EPC Class 1 Gen 2 – ISO18000-63

Antenna Gain

3.0 dBic (typical)

Antenna Polarization

Integrated Circular Polarized Antenna

Read Range

Up to 5.0 m (Typical)

USB Interface

USB 2.0 Full Speed (12 Mbit/s) via USB Type-C connector

Bluetooth Interface

Bluetooth 4.2 Smart Ready compliant
11 dBm EIRP output power BR
5 dBm EIRP output power EDR
7 dBm EIRP output power BLE
HID and Serial over GATT (BLE)
HID and SPP profiles (Bluetooth classic)

User Interface

Power and Trigger buttons
Power and battery status LED
Communication and operation result LED
Bi-tonal buzzer and vibration element for event signaling

Battery Type

Li-Ion 3.7 V, 5200 mAh

Battery Life

Operating: > 12 h (with 100,000 tag readings)
Standby: > 50 days (powered off, no LED blinking)

Battery Charging Time

4 hours with 5V 3A AC/DC power supply (with Wireless Charger TX disabled)
6 hours with 5V 3A AC/DC power supply (with Wireless Charger TX enabled)

Wireless Charger

Transmitter power 5W

IP Rating

IP65

Dimensions

151 x 150 x 72 mm3
5.9 x 5.9 x 2.8 inches3

Operating Temperature

-10 °C to +55 °C

USB Cable Length

1.5 m

Weight

374 g (w/o barcode)
386 g (with barcode)

Name
Revision
R1307I fIDo Technical Information Manual
0
CAEN RFID SDK Technical Information Manual
1
Easy Controller Software Technical Information Manual
5
easy2read Protocol Technical Information Manual
19

Name
Environment
OS-Version
Revision
CAEN RFID SDK
.Net Standard,Android,C,C++,Java,Swift
10/7/8/Vista/x64bit 7/x64bit Vista/x64bit XP/XP
5.0.0
R1307I fIDo ConfigurationTool
1.0.0
Easy Controller Software Windows version
.Net
11/10
1.13.0

Name

R1307I fIDo Data Sheet

R1307I fIDo Technical Drawings

WR1307IXEUAA
fIDo - RAIN RFID sled reader - ETSI
WR1307IXUSAA
fIDo - RAIN RFID sled reader - FCC
WR1307IBXEUA
fIDo - RAIN RFID sled reader with barcode - ETSI
WR1307IBXUSA
fIDo - RAIN RFID sled reader with barcode - FCC
